BSC Rain Sensor RS 301

For connection to BSC SHEV control panels, RM301 and RM 301/4
7478
7478
4251682612142

Delivery time 9 - 12 Working days
Important info about the delivery time specification

€128.98 *

incl. VAT plus shipping costs

Leave your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the item drops in price
as soon as the item is available as a special offer
On the top of the RS 301 rain sensor there is a corrosion-resistant sensor plate which is... more

On the top of the RS 301 rain sensor there is a corrosion-resistant sensor plate which is connected to an AC voltage of approx. 24 - 28 V AC/50 Hz. The sensor plate is electrically heated so that the electrodes dry quickly, e.g. after a rainfall. If rainwater gets onto the sensor plate, a signal is transmitted to the RM 301 rain detector and a switching operation is triggered. Max. two rain sensors RS 301 can be connected to one switching device RM 301.

The rain sensor RS 301 must be mounted on the main weather side in an unprotected place (connect lightning protection earth). When rain or snow starts to fall, a switching signal is sent to the switching device RM 301 ( Rain Sensor RM 301 ).
Function control:
If the sensor surface of the rain sensor is touched with a slightly moistened hand, a rain signal is sent to the switching device.

Operating mode: S1 (100 % ED)
Operating voltage: 18 - 24 V AC/50 Hz
Housing color: RAL 7035 (light gray)
Weight: 165 g
Power consumption: 1.5 - 2.4 W
Protection class: IP 65
Temperature range: -20 °C to +80 °C
Maintenance: annual cleaning of the sensor plate (correspondingly more frequent in the case of heavy environmental pollution)
Materials: ABS, epoxy resin, galvanically gold-plated

Technical advice

+49 9282 48731-15
technik@bsc-technology.de

Fast delivery

... of goods in stock. Orders placed before 14:00 are usually shipped the same day.

Questions about the article

to the inquiry form

What do you have to look out for when you want to connect a wind and/or rain detector to a SHEV control panel or ventilation system? We will give you a few tips to ensure that you choose the right product.
Technical data more
Protection class : IP 65
Voltage : 24 V AC (18 - 24 V AC/50 Hz)
Scope of delivery: Rain sensor

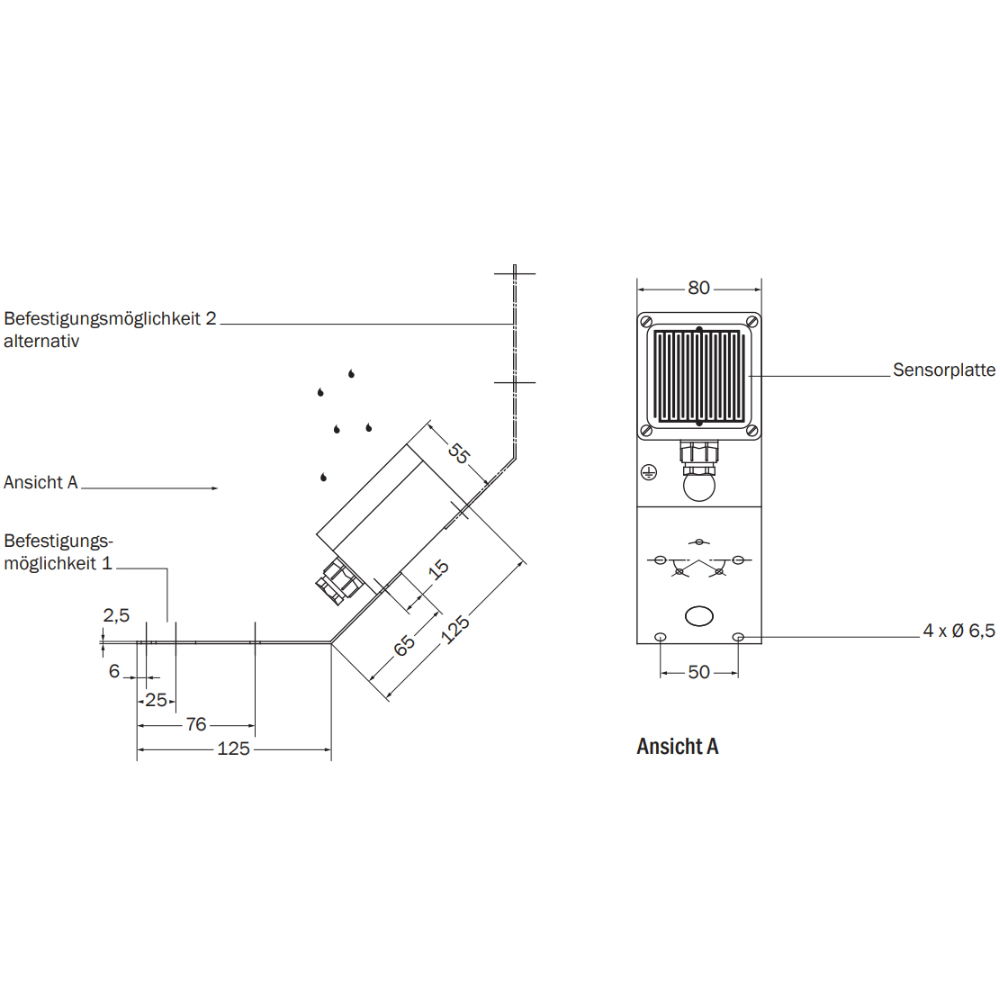

Dimensions: 80 x 80 x 55mm (housing)
Housing: Plastic
