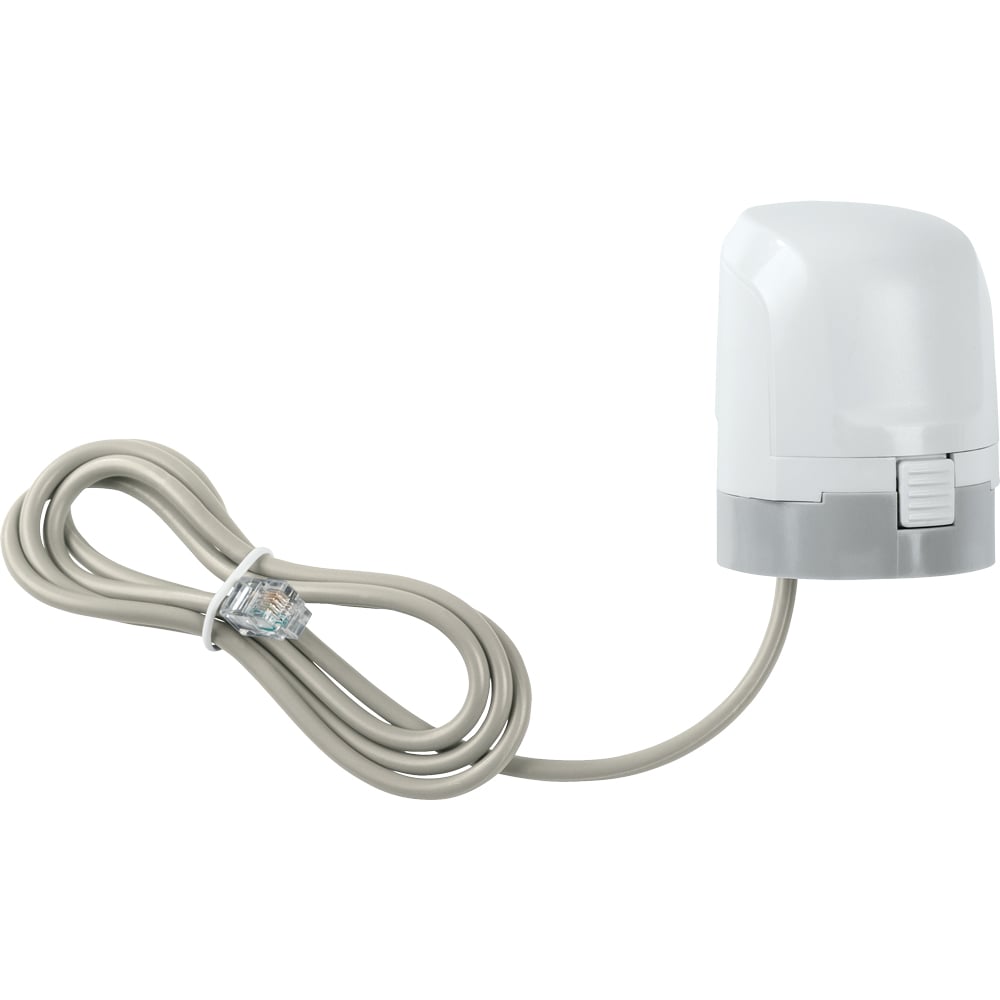

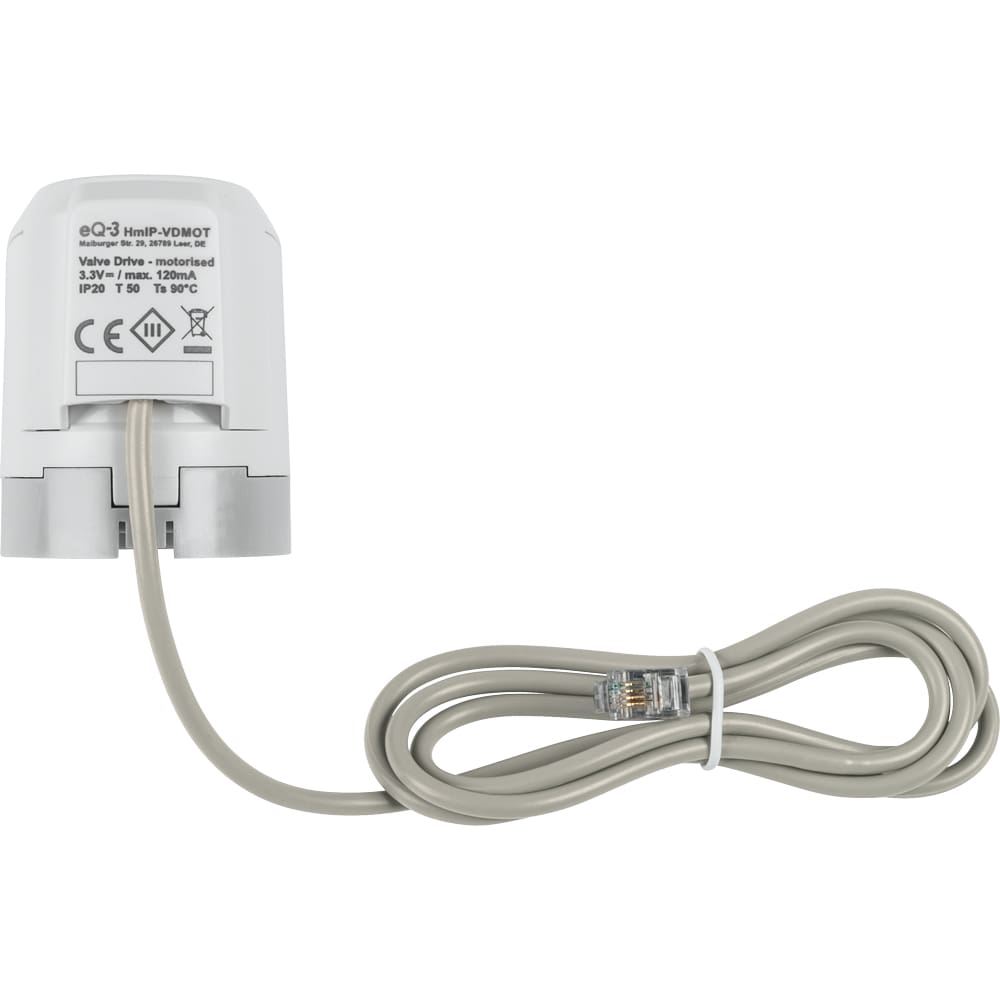

Homematic IP actuator - motorized for floor heating, HmIP-VDMOT, incl. valve adapter VA80

Homematic IP actuator - motorized #153309A0

The Homematic IP actuator provides stepless, motorized control of underfloor heating valves for convenient room climate control. Compared to conventional actuators, the motorized actuator enables precise regulation of the flow rate, allowing boilers to be utilized more efficiently and temperatures to be controlled much more precisely. When used in an apartment building, this can typically save over €50 in electricity costs.

The actuator technology, proven millions of times over in radiator control, is also used in the actuator and ensures precise and reliable regulation of the valve position required in each case. The Homematic IP system automatically detects the respective valve position as well as the stroke, which simplifies installation and protects the mechanics. The actuator is controlled via the Homematic IP floor heating actuator |-|- 12-fold, motorized (HmIP-FALMOT-C12) in combination with a Homematic IP wall thermostat (e. g. |-|B. HmIP-WTH-2). The actuator can be mounted without tools using a click lock and flexibly in any position, such as overhead. Thanks to the prepared plug, the electrical connection is also completed in a few seconds. The supplied M30 x 1.5 mm mounting adapter enables quick installation on the most common valves from leading manufacturers. Suitable adapters are available for other valve types.

Further product information is available at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

• Stepless and energy-efficient control of heating valves for convenient control of the room climate.
• By adjusting the valve position, the flow rate of the heating water is controlled almost continuously - this enables more efficient utilization of the heating boiler, more precise temperature control and electricity cost savings compared to conventional actuators.
• Control via the Homematic IP floor heating actuator |-|- 12-fold, motorized (HmIP-FALMOT-C12) in combination with a Homematic IP wall thermostat (e.g. HmIP-WTH-2)
• Universally applicable and suitable for the most common valves (thread dimension M30 |-|x 1.5 mm) of the leading manufacturers. Can also be used on other radiator valves via adapter.
• One of the following solutions is required for operation: Stand-alone in conjunction with the Homematic IP floor heating actuator - 12-fold, motorized (without access point or central control unit, configuration directly on the wall thermostat)|-| Homematic IP access point with free smartphone app and toll-free cloud service Central CCU2/CCU3 with local user interface WebUI|-| Third-party partner solutions.
