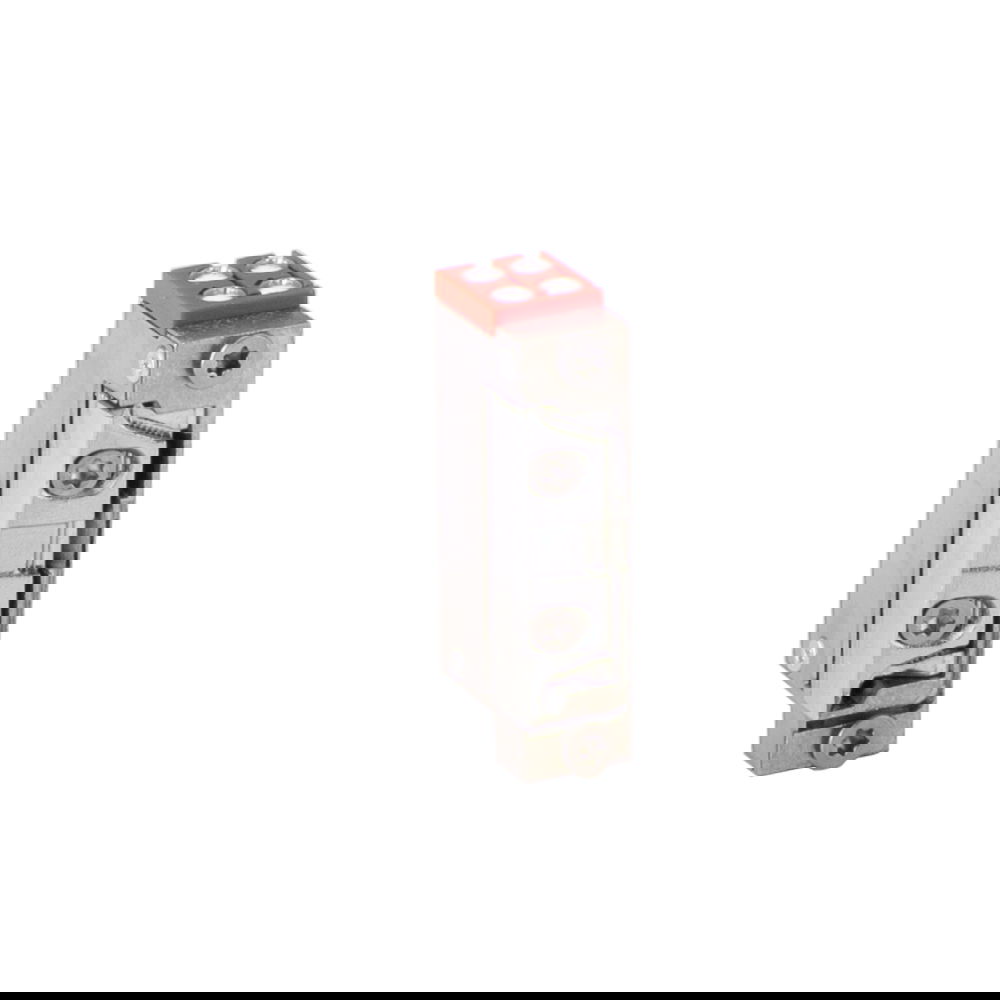

Preview: GEZE Kompakttüröffner A5000--B

Preview: Kompakttüröffner A5000--B 12 - 48 V AC/DC

GEZE Kompakttüröffner A5000--B

Kompakttüröffner A5000--B 12 - 48 V AC/DC

Item no: 7761

Manufacturer number: 144590

EAN: 4042938445900

Ready to ship today, Delivery time appr. 1-3 workdays
Important info about the delivery time

€48.41 *

incl. VAT plus shipping costs

Leave your email address and stay informed about this article.

as soon as the item is back in stock

as soon as the item drops in price

as soon as the item is available as a special offer

Compact electric strike A5000--B - identical in construction to eff 118----B71, 11805, 118S... more

Compact electric strike A5000--B - identical in construction to eff 118----B71, 11805, 118S

The A5000--B compact electric strike impresses with its small dimensions. It is ideally suited for use on standard doors and is also approved for smoke protection doors.

Performance features:

Radius latch 3 mm adjustable, in 0.75 mm increments
Wide operating voltage range due to double coil technology
Connection to direct or alternating current
Integrated bipolar EMC protection diode
Mounting on left and right hinged doors, as well as vertical or horizontal possible

Technical data:

Operating principle: open-circuit current
Momentary contact: 12 - 48 V AC/DC
Continuous duty: 12 or 24 V AC/DC +/- 15%
Current consumption: 200 mA (at 12 V) / 100 mA (at 24 V)

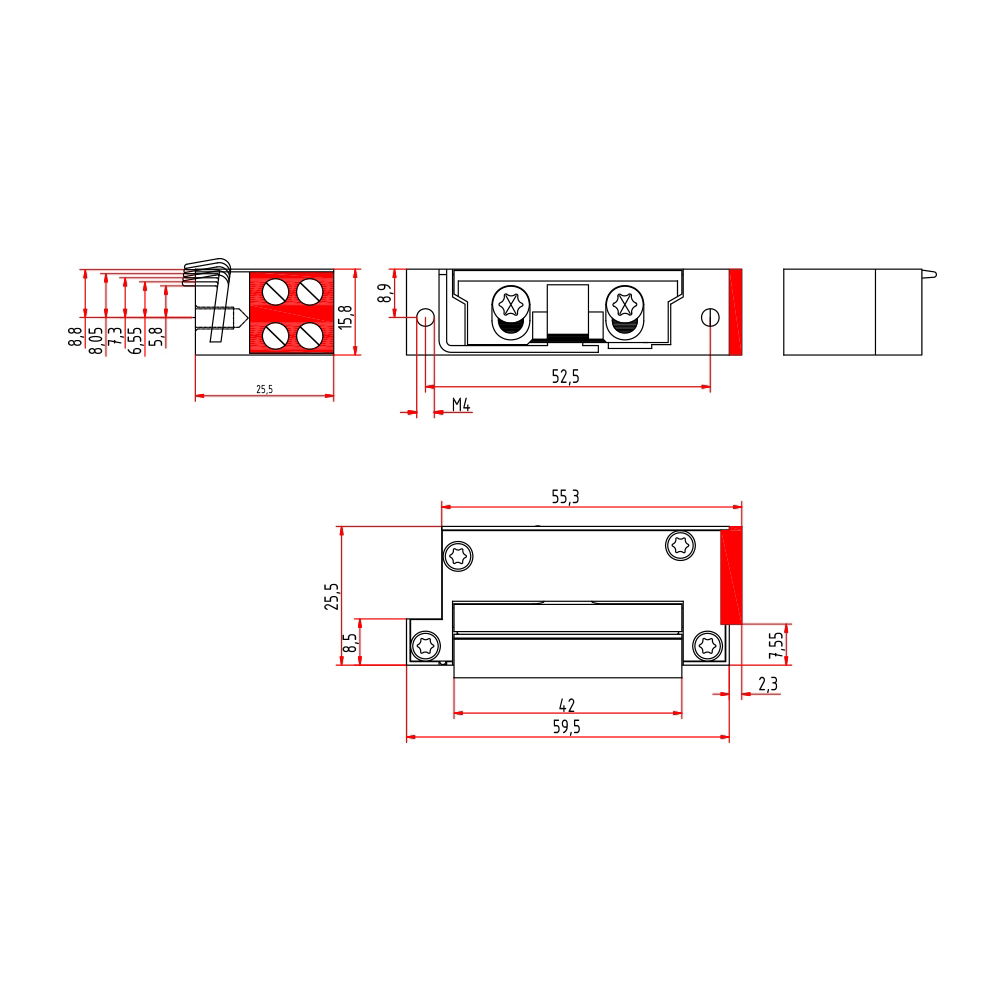

Dimension (W x H x D): 15.8 x 59.9 x 25.5 mm

Technical advice

+49 9282 48731-15
technik@bsc-technology.de

Fast delivery

... of goods in stock. Orders placed before 14:00 are usually shipped the same day.

Questions about the article

to the inquiry form

Technical data more

Scope of delivery:

Electric strike without strike plate

Scope of delivery & accessories more

Scope of delivery

Electric strike without strike plate
